CEILING SYSTEMS
Comfort changes perspective
THE ADVANTAGES OF COOLING/HEATING CEILING SYSTEMS
-
Perfect application for cooling
-
Well suitable for heating
-
Fast response time for cooling and heating
-
Perfect for residential building
-
Perfect for office building
SIMPLIFIED METHOD OF INSTALLATION
-

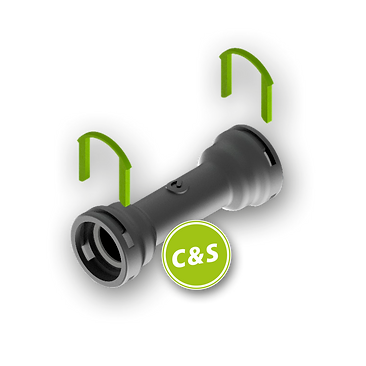

The new tool-free fitting system Click&Safe guarantees a secure and extremely fast connection of the ceiling panels
-
The fittings are already pre-assembled at the factory and only a connecting element has to be clipped in on site
-
Milled plasterboard with pipe 10 x 1.3 mm pre-assembled
-
Laser marking of the pipe guide for maximum safety during assembly
-
Integrated distribution line, multilayer pipe 20 x 2.0 mm
Acoustic ceiling
DESIGN MEETS PERFORMANCE
Thanks to the double plasterboard acoustic board, this system combines the climatic comfort advantages of a radiant ceiling system with a high sound-absorption power capable of eliminating the bothering effects of environmental reverberation.
Sound absorption values relative to the single sound-absorbing board (Knauf technical sheet).
Suspension: a = 200 mm / b = 60 mm
Sound absorption αs calculated for the acoustic ceiling + 50 mm rock wool panel combination. Calculated according to the EN 29053 and ASTM C522 standards, assuming a gap of 200 mm.
EPS insulation
Hydraulic backbone
10 x 1.3 mm
diameter pipe
incorporated
Plasterboard milling
Laser marking
Fittings
Optimised way
of installation by maximised use of
surface and minimised
use of fittings
Comparing to the most used pipes in plasterboard system 8 x 1.1 mm, our ceiling system is working with pipe 10 x 1.3 mm pipe
